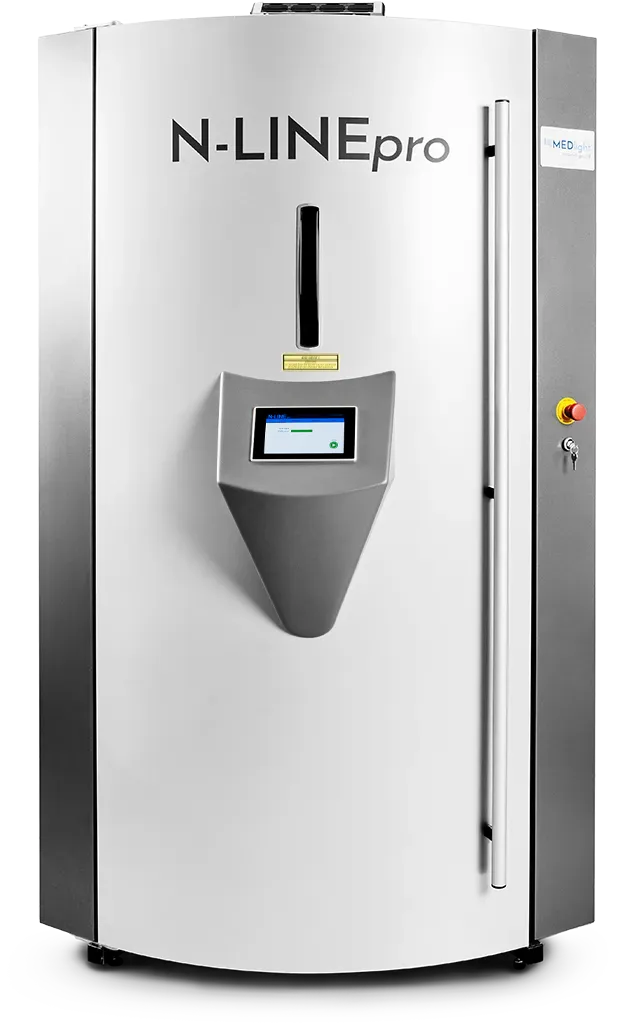

N-LINE

Our most powerful and capable phototherapy system ever.

The N-LINE series is the ultimate solution for professional UV phototherapy. Featuring two exceptional UV cabin models, each designed to meet your specific requirements. Both models share a common foundation, boasting our unique core design along with all essential safety features.

Let's Talk

Do you have questions? Our MEDlight specialists are here to help, and it's absolutely free. Start the conversation today.

Technologies

Our devices integrate cutting-edge technologies to deliver exceptional care, precise treatments, and a superior patient experience. These technologies exemplify our commitment to innovation and excellence.

Dose-Sense Icon

Dose Sense

Advanced sensors continuously monitor the UV output and provide real-time dosage calculations.

Arc-Concept Icon

ARC-Concept

The curved and oval cabin layout lamp arrangement is based on the human body and ensures a uniform distance to the skin.

Clean Flow Icon

Clean Flow

By channeling air through carefully engineered pathways, we reduce dust particles inside the equipment.

Crystal Clear Shield Icon

Crystal Clear Shield

The advanced polymer protects the lamps from dirt and damage while transmitting the UV light unhindered.

Whisper Cool Icon

Whisper Cool

The high-efficiency fan array maximizes the lamp's life and performance without interfering with your work.

Reflex Pro Icon

Reflex Pro

We utilize ultra-reflective back panels. The panels enhance the treatment environment, by visually expanding the space while maximizing the efficiency of the lamps.

CNC Manufacturing
Electrical Component

Certified Medical Devices

MEDLight GmbH is a renowned medical device manufacturer from Germany with a history spanning over six decades in the development and production of UV phototherapy and photodynamic therapy devices.

Our business operations are characterized by a deep commitment to quality and responsibility. We undergo continuous certifications and maintain a professional quality management system that adheres to the high European and German standards.

2M EcoFlex

Use the full potential of standard-length lamps even for patients over 200cm. Sustainable technology that cares for patients and the planet.

10% Initial Price 15% Running Costs
Save on initial and replacement cost while also reducing energy consumption.
Optimized lamp arrangement.

Connect with SKINdex

SKINdex is MEDlight's propriety treatment management software. Combine data collection, therapy planning, and cabin operation into a single system.

(SKINdex requires a N-LINE PRO or N-LINE PRO MAX)

Computer screen representing MEDlight Skindex

Remote Control

Control of up to two separate systems

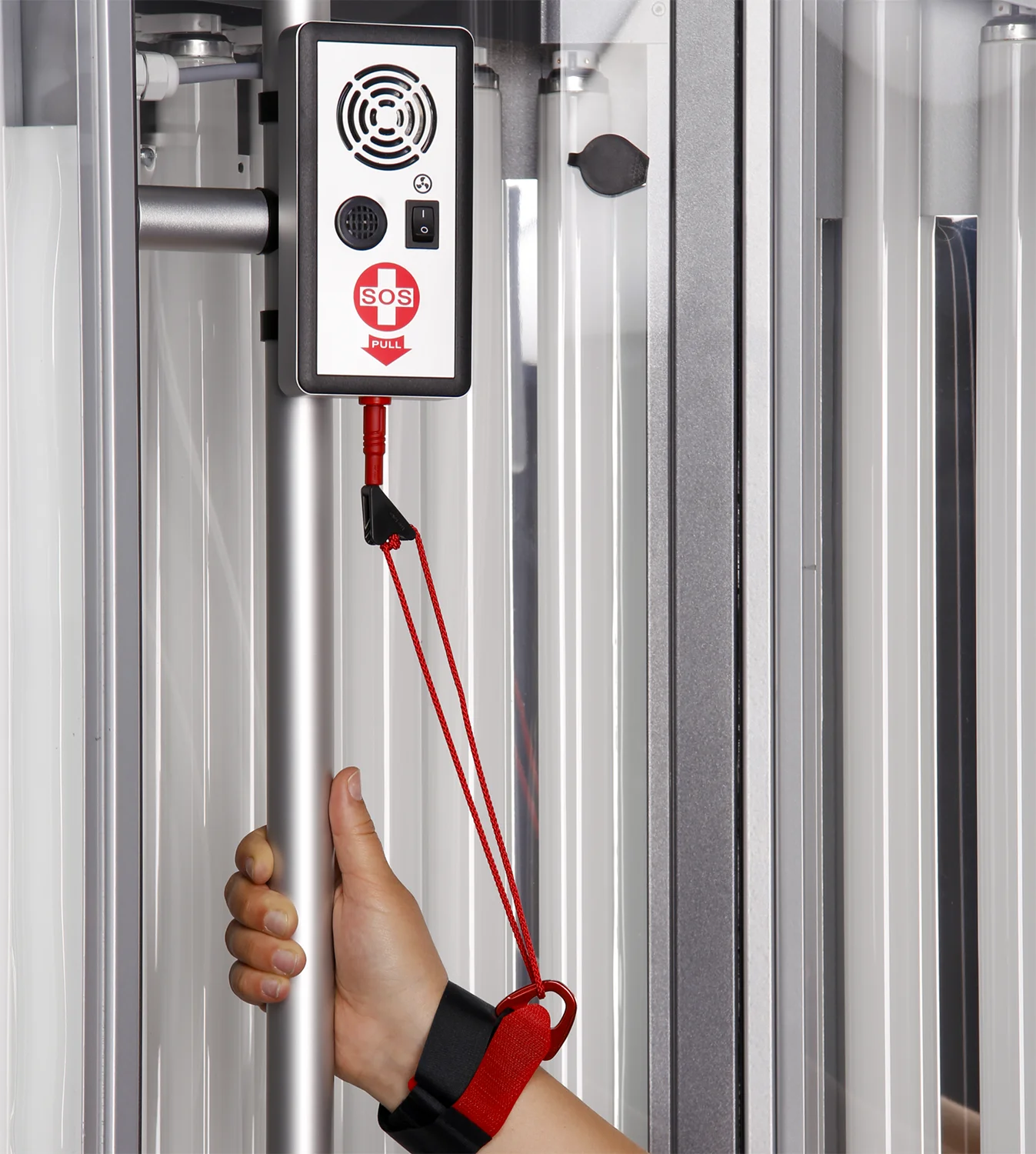

Intercom/Video

Communicate via your control station

Therapy Planning

Create automated treatment plans

Discover all features

Discover the features that make the N-LINE cabin the ideal system for professional whole-body UV phototherapy.

Ergonomic

The device is designed according to ergonomic principles and puts patients in a back-friendly and comfortable sitting position during treatment.

ARC-Concept

All lamps are arranged on a curve to concentrate the light where it is needed. The ARC-Concept provides excellent exposure to the lower extremities while allowing the treatment of even taller patients (2 meters).

2M EcoFlex

Intelligent placement allows 1.8m lamps to effectively perform as 2m lamps without wasting energy. This enables treatment for taller patients while embracing eco-friendliness and offering long-term cost savings with standard length lamps.

Dose Sense

Real-time dosimetry guarantees reliable results by constantly monitoring the energy output and adjusting the treatment, ensuring that you deliver the intended dose, regardless of variables, such as lamp condition or voltage.

Heavy Duty Use

The N-LINE series is for professionals where reliability and durability matter. The galvanized steel body and door with powder coating are constructed for long-term use.

Acrylic Shielding

The crystal-clear acrylic shielding protects the lamps from dirt and damage. UV light passes through the shield unhindered. Cleaning or surface disinfection is quick and easy.

Convenient

The bottom platform and lamp shielding are made of medical-grade materials that can be removed for easy cleaning and disinfection.

Reflective Space Extension Panels (ReflexPro)

Reflective back panels direct the UV light at the patient, maximizing lamp efficiency and allows for shorter treatments. Simultaneously, the panels visually increase the cabin space.

Electronic Starters

Despite its compact size, every lamp uses electronic starters. Users benefit from reduced energy consumption and increased service life of the lamps.

Smooth Air Technology

Smooth Air Technology (SAT) - Cooling is important because it helps to maintain the optimal temperature for the lamp to operate efficiently and effectively. If the lamp is too hot, it can result in shortened lamp life and reduced UV output. The temperature management system maximizes service life and performance.

Low Noise

Premium cooling fans with advanced fluid-dynamic bearings keep the cabin at an unobtrusive volume level and make communication easier.

Dust Reduction System (DRS)

The overhead air intake keeps dust and dirt particles out of the system to maintain the maximum performance of the UV lamps.

Open Cabin Design

The open top prevents patients from feeling confined, while the UV reflectors (RSEP) act as mirrors inside the cabin. Patients enjoy the perception of a more spacious and well-ventilated environment.

Which system is best for you?

Each N-LINE System is designed to meet specific requirements. All models share a common foundation, boasting our unique core design along with all essential safety features.

Need help choosing a model?

Talk to our experts or explore the detailed differences in our technical specs.

Technical Details

Choose your spectrum

UV phototherapy, also known as light therapy, is a common form of treatment that uses, ultraviolet light on exposed skin to treat several types of skin conditions. The choice of spectrum and treatment parameters are based on individual needs and considerations.

Please note that the information provided on this website is not medical advice. For treatment recommendations and personalized care, always consult qualified healthcare professionals.

UVB 311nm (Narrowband)
PHILIPS Lighting
{{lampcount}}x 100w 180cmw UVB-311nm
UVB Narrowband is often considered for: Psoriasis, Parapsoriasis, Vitiligo, Atopic Dermatitis, Mycosis fungoides, other skin diseases
UVB (Broadband)
PHILIPS Lighting
{{lampcount}}x 100w 180cmw UVB
UVB Broadband is often considered for: Psoriasis, Parapsoriasis, Vitiligo, Atopic Dermatitis, Mycosis fungoides, other skin diseases
UVA-1
PHILIPS Lighting
{{lampcount}}x 100w 180cmw UVA-1
UVA-1 is often considered for: Psoriasis, Parapsoriasis, Vitiligo, Atopic Dermatitis, Mycosis fungoides
UVA (PUVA)
PHILIPS Lighting
{{lampcount}}x 100w 180cmw UVA
UVA (including PUVA) is often considered for: Psoriasis, Parapsoriasis, Vitiligo, Atopic Dermatitis, Mycosis fungoides
Mixed Spectrum
PHILIPS Lighting
{{lampcount}}x 100w 180cm Mixed
For maximum flexibility you can install a lamp combination and always select the best treatment for each patient. UVA & UVB UVA & UVB 311nm (Narrowband) UVA-1 & UVB UVA-1 & UVB 311nm (Narrowband)

Would you like to use our treatment management software?

SKINdex is MEDlights propriety treatment management software. Combine data collection, therapy planning, and cabin operation into a single system. (Requires N-LINE PRO)

SKINDEX requires N-LINE PRO / MAX

Would you like to add additional services?

Service illustration

MEDlight Service+

Optimize your product package with MEDlight Service+. Benefit from an automatic warranty extension plan, coupled with access to top-tier technical support from the people with unmatched familiarity with your devices.

MEDlight Academy illustration

MEDlight Academy

Are you interested in enrolling in MEDlight Academy? Empower your staff through precisely tailored training courses, curated by MEDlight to maximize the potential of your devices.

MEDlight Global Connect Illustration

Global Connect

Tailor your product for global markets: customized language options, regulatory compliance, and power supply adaptation to meet diverse country requirements.

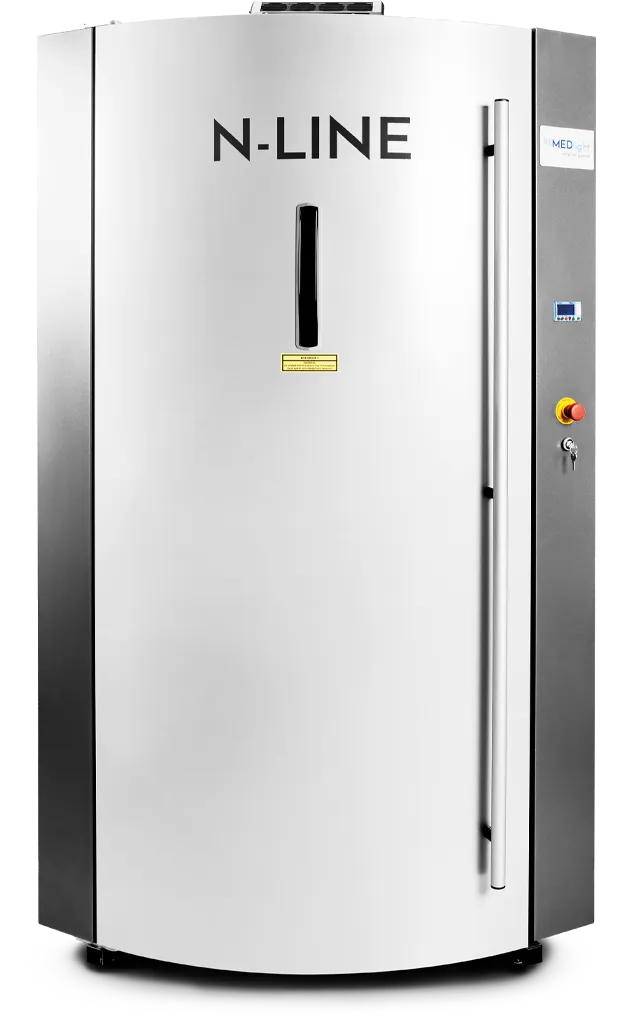

N-LINE

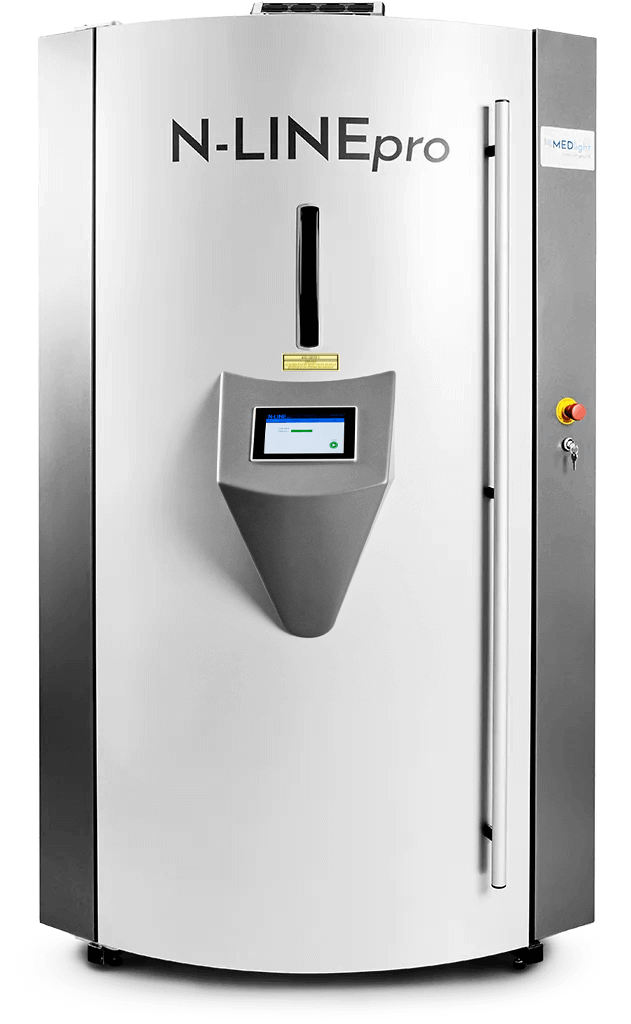

N-LINE PRO
N-LINE PRO MAX

{{modelselected}}

You can send us your configuration to get a free quote below.

Summary

{{storeconfig.options[index-1]}}

Get Details:

  • Cost estimate
  • Delivery dates
  • Installation plan
  • Recycle your old devices

Need some assistance?

Request a quote and we will get into contact and help you make the best decision.

Technical Details
N‑LINE N‑LINE PRO N‑LINE PRO MAX
Lamps 28 x 180 cm 100 W 40 x 180 cm 100 W 40 x 180 cm 100 W
Brand Philips Lighting
Spectrum UVA (PUVA), UVA-1, UVB-311nm (Narrowband), UVB (Broadband)
Mixed Spectrum It's possible to install two different lamp types and choose between the best treatment spectrum. The following combinations are possible: UVA-1 and UVA (PUVA), UVB-311nm (Narrowband) and UVB (Broadband)
Power
Voltage 230V 400V 400V
Frequency 50Hz 50Hz 50Hz
Consumption 3200VA 4900VA 4900VA
Dimensions
Height 214cm 214cm 214cm
Width 121cm 121cm 121cm
Depth 114cm 114cm 114cm
Weight 280kg 330kg 330kg
Operation

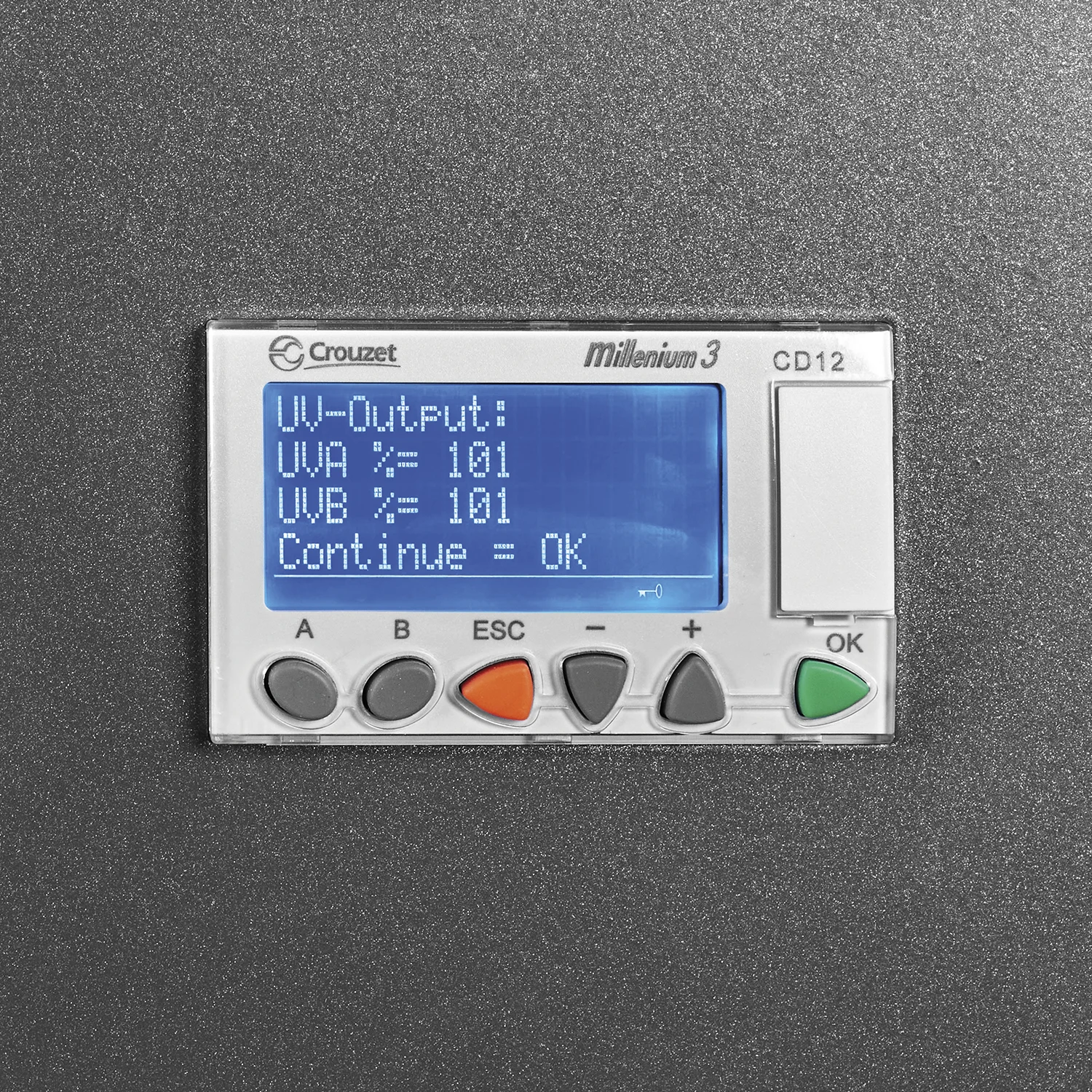

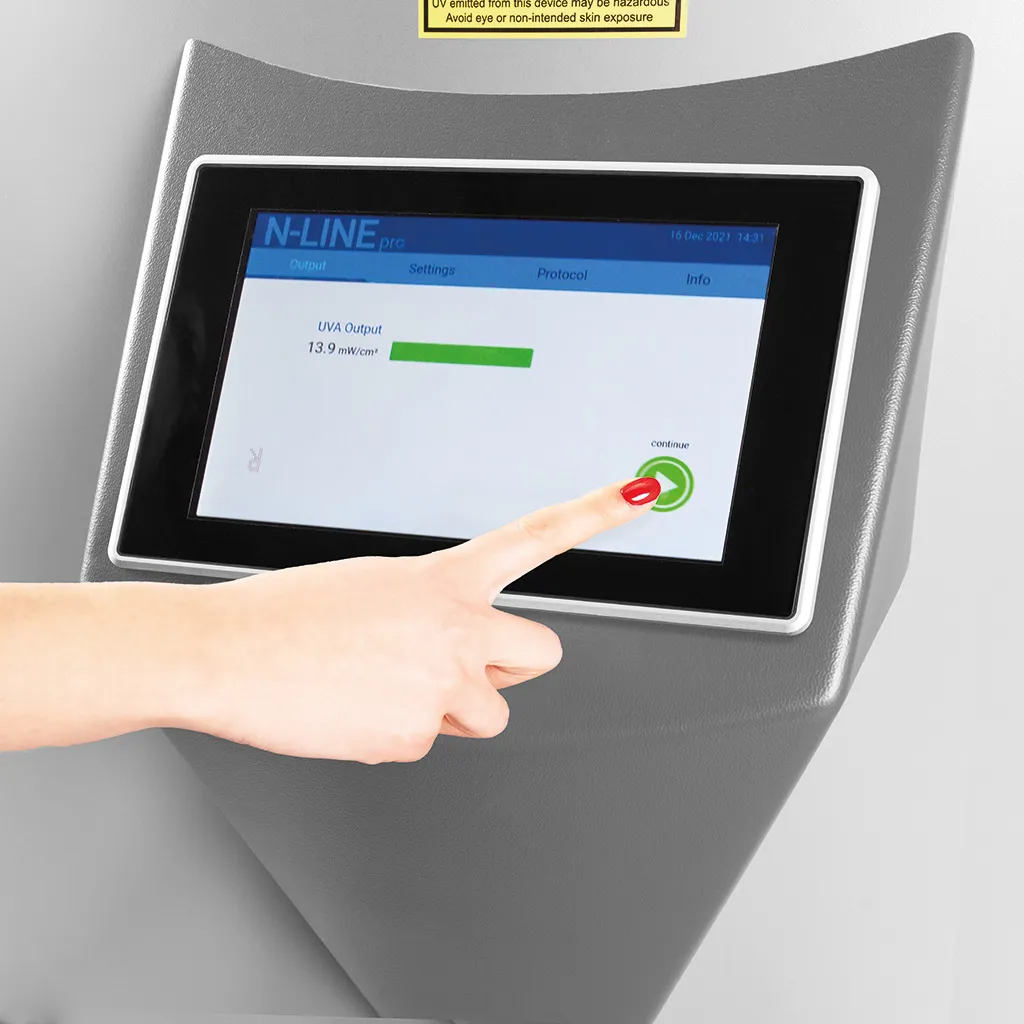

Control Industrial Grade Controller 8" Touchscreen 11,8" Touchscreen
Language Support English, German, French, Spanish, Italian, Russian, Chinese German, English, French, Italian, Spanish, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, Greek, Hungarian, Indonesian, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese. Language support can be extended.
Network x 1G Ethernet Optional
Remote Control x Skindex optional
Intercom x Optional
Safety
Emergency Switch Emergency off-switch on the outside
Dosimetry 4 x Dose Sense real-time sensors
Window A UV-shielded privacy window allows performing a visual check on the patient

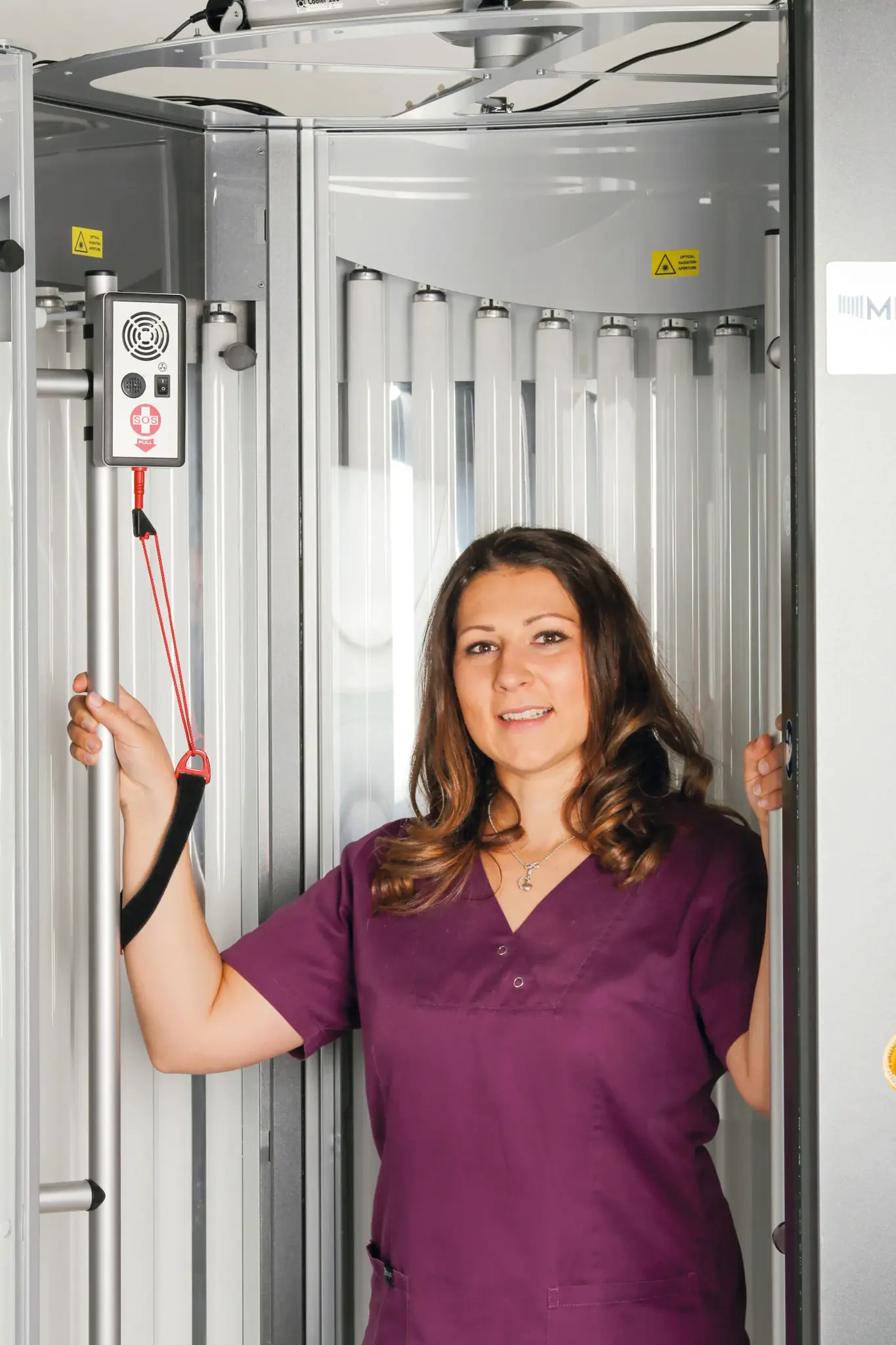

Stability Bars Two stability bars offer patients stability and support while keeping them in the correct treatment position
Emergency call x Patient emergency-call handle

Contact us

Need more information? Describe your project requirements so that we can provide you with a non-binding quote. We will contact you to discuss the details.

I am a:

  • {{storeconfig.product}}
  • {{storeconfig.options[index-1]}}
Contact Details
Datenschutz
We need your confirmation to proceed. Please check the box to confirm your agreement.

FAQ

Phototherapy, particularly targeted phototherapy, is effective and fast-acting, with a proven safety record and generally no need for laboratory monitoring. It is also suitable for various patient groups. Additionally, it is notably more affordable than biologics While concerns regarding an elevated risk of skin cancer remain, recent studies that examined long-term narrowband UVB phototherapy suggest that the treatment might not be linked to an increased risk.
Home phototherapy presents an economical and convenient option for managing psoriasis, particularly for patients with smaller patches. However, especially more severe cases can benefit from full-body home devices. It is well tolerated, effective, and associated with a better quality of life than outpatient phototherapy. Ideal patients for home therapy are those who are reliable, have been educated in the use of the device, and for whom outpatient phototherapy is impractical.
Phototherapy with UVA or UVB radiation is an important part of modern dermatology. It is particularly effective for inflammatory skin diseases and has been established as a treatment option in the S3 guidelines. Even with the development of new drugs, phototherapy remains an important part of the treatment recommendations for various skin diseases, such as psoriasis, atopic dermatitis, vitiligo, and mycosis fungoides.

Phototherapy is particularly convincing as a first-line therapy due to its:
Efficacy: In general, good to very good efficacy is achieved.
Side effects: Compared to other therapies, side effects are usually manageable.
Tolerability: Phototherapy is well tolerated by most patients, even by those who are not eligible for systemic therapy.
Cost-effectiveness: The treatment is relatively inexpensive compared to other therapies.

In combination with photosensitizers, such as psoralen (PUVA therapy), dermatologists can also successfully use phototherapy for other skin diseases.
UV light therapy is an effective solution for treating several skin conditions. These include psoriasis, eczema, and vitiligo.
Light therapy is safe and well tolerated, with minimal side effects compared to systemic medications.

Medlight offers professional-grade devices designed for clinical settings, as well as user-friendly home therapy options. We also provide comprehensive support and training for healthcare providers to ensure optimal outcomes and satisfaction throughout the treatment process.
Light therapy is safe and well tolerated, with minimal side effects compared to systemic medications.

Medlight offers professional-grade devices designed for clinical settings, as well as user-friendly home therapy options. We also provide comprehensive support and training for healthcare providers to ensure optimal outcomes and satisfaction throughout the treatment process.
