With the certified PDT lamp TREVIOLUX you can choose between conventional photodynamic therapy, low-pain Compact Daylight PDT, or skin rejuvenation. Three treatment modes in a single compact device. Designing the right treatment is now faster and easier than ever.
Do you have questions? Our MEDlight specialists are here to help, and it's absolutely free. Start the conversation today.
Our devices integrate cutting-edge technologies to deliver exceptional care, precise treatments, and a superior patient experience. These technologies exemplify our commitment to innovation and excellence.
The TREVIOLUX combines three applications in a single device. Classic PDT, Compact-Daylight-PDT and Rejuvenation.
The mobile and compact design offers several advantages for all types of healthcare facilities, such as improved access for patients with disabilities and simple integration into existing environments.
We use the latest generation of high-performance LEDs (max. 135.000 LUX) to reduce energy consumption while being safe and reliable.
From our virtually pain-free Compact-Daylight-PDT and Soft-Start feature to the Pulse-Mode, we are committed to enhancing the patient experience.
MEDLight GmbH is a renowned medical device manufacturer from Germany with a history spanning over six decades in the development and production of UV phototherapy and photodynamic therapy devices.
Our business operations are characterized by a deep commitment to quality and responsibility. We undergo continuous certifications and maintain a professional quality management system that adheres to the high European and German standards.

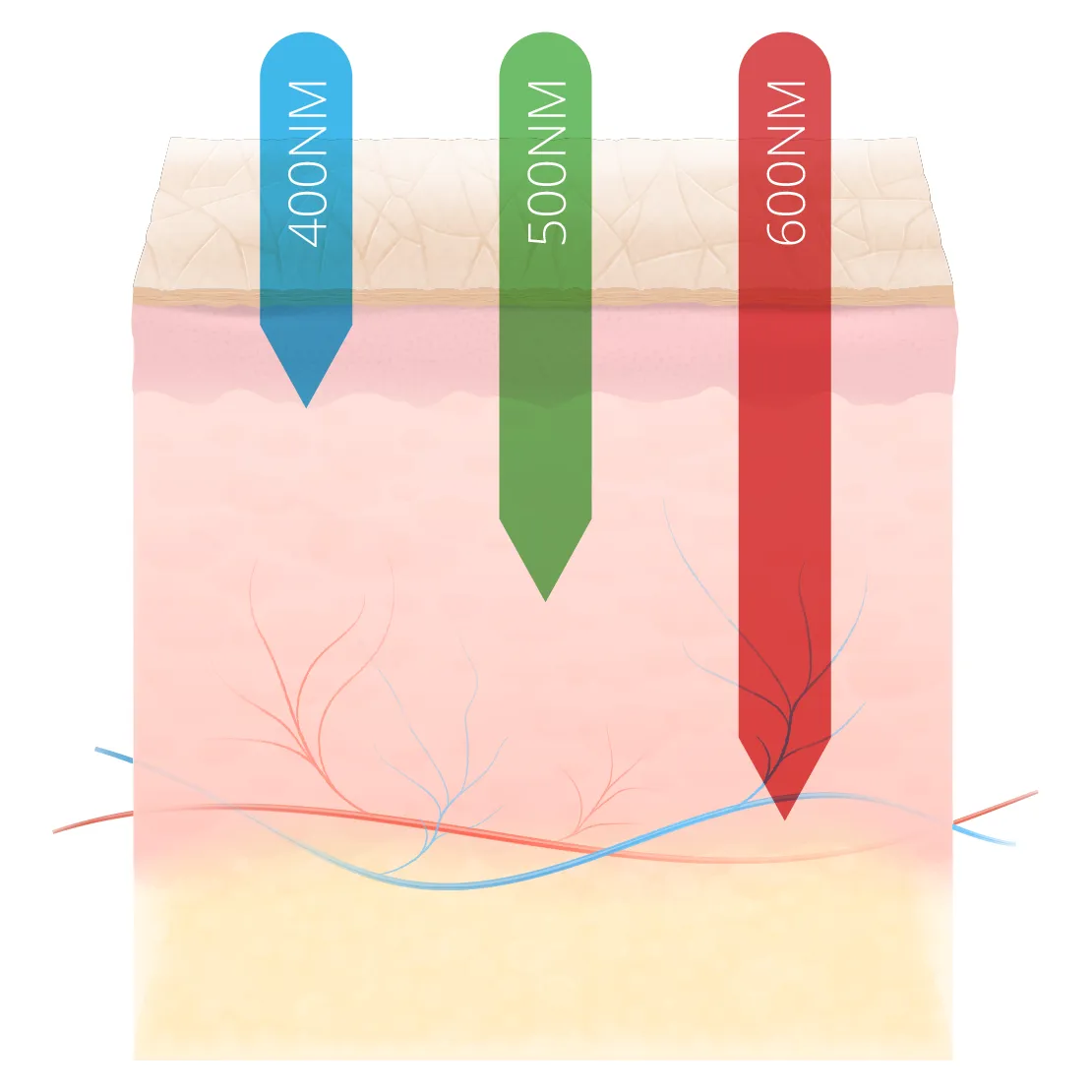

The TREVIOLUX combines three applications in a single device. At a peak wavelength of 630 nm, the light penetrates deep and effectively into the tissue during irradiation.
Conventional photodynamic therapy (PDT) is an established method for the treatment of actinic keratoses and basal cell carcinoma, the two most common forms of non-melanoma skin cancer.
PDT is based on a well-established procedure in which a photosensitizer, typically methyl aminolevulinate (MAL), is applied topically. The drug binds selectively to the malignant cells. A special light is used to destroy the malignant cells without damaging the surrounding healthy tissue.
In addition to proven efficacy, the treatment offers excellent cosmetic results with minimal scarring. The proprietary Soft Start / Pulse modes can reduce the discomfort of the treatment. This can help patients with increased pain sensitivity.
The Compact Daylight PDT is a unique, effective, and extremely beneficial approach to treatment. Inspired by the principles of the Daylight PDT. A controlled and virtually pain-free treatment - best suited for superficial actinic keratoses.
Photodynamic therapy (PDT) with Methylaminolevulinate has been shown to be useful in the treatment of certain forms of non-melanocytic skin cancer. This modern method can be performed using both cold red light (cPDT) and daylight ("Daylight PDT"; DL-PDT).
We would like to introduce you to our approach: Compact Daylight PDT with the TREVIOLUX (Compact Daylight PDT) or Artificial Daylight PDT (ADL-PDT). In addition to conventional PDT, the TREVIOLUX also lets you perform Compact Daylight PDT all year round, regardless of the weather conditions and with little to no pain.
Skin rejuvenating effects of PDT for photoaged skin have been well-documented in several clinical trials. The rejuvenation mode simplifies the use of PDT for aesthetic applications.

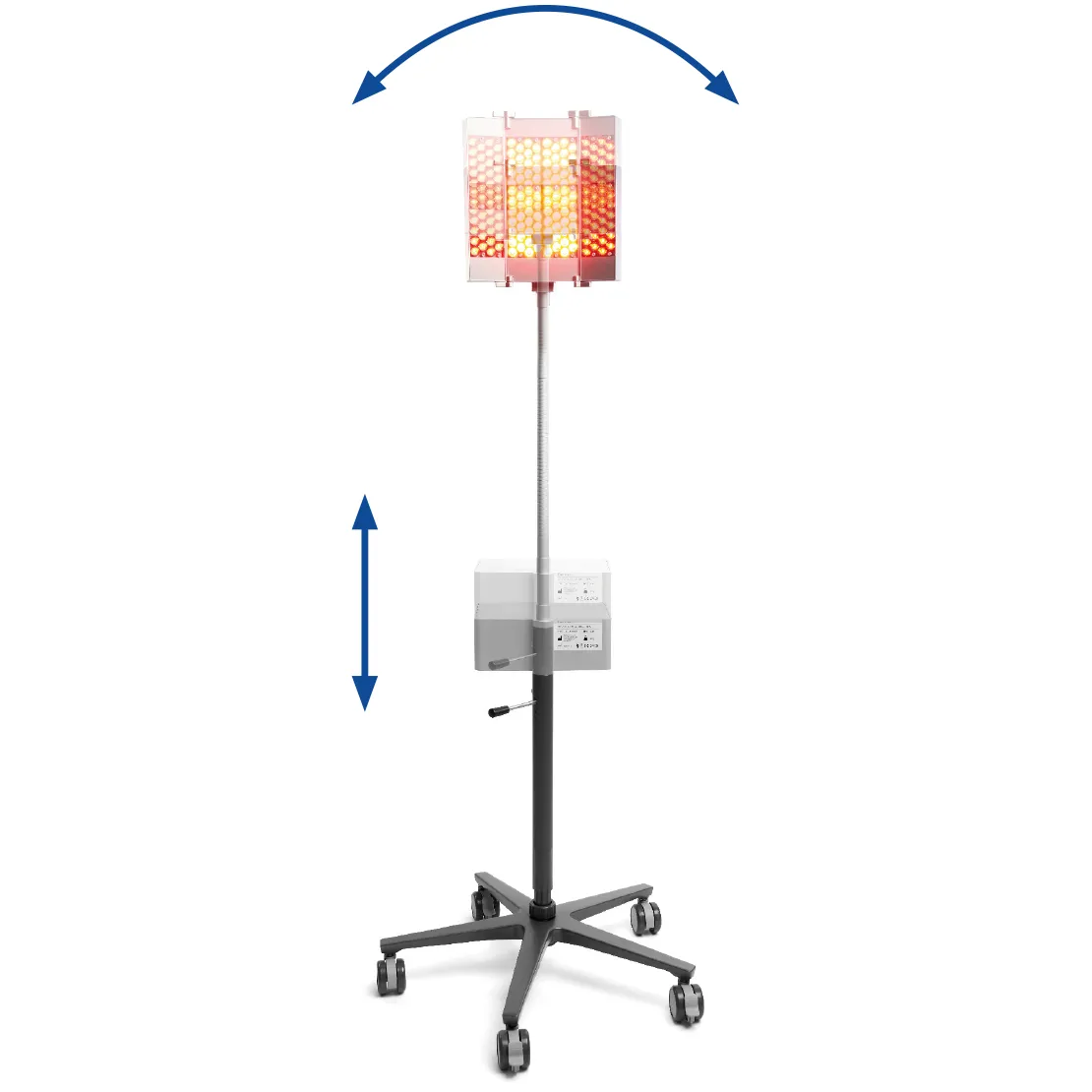

Quickly set up the best treatment position using the flexible treatment arm. The trifold treatment segments can be angled and perfectly match the shape of the treatment area.

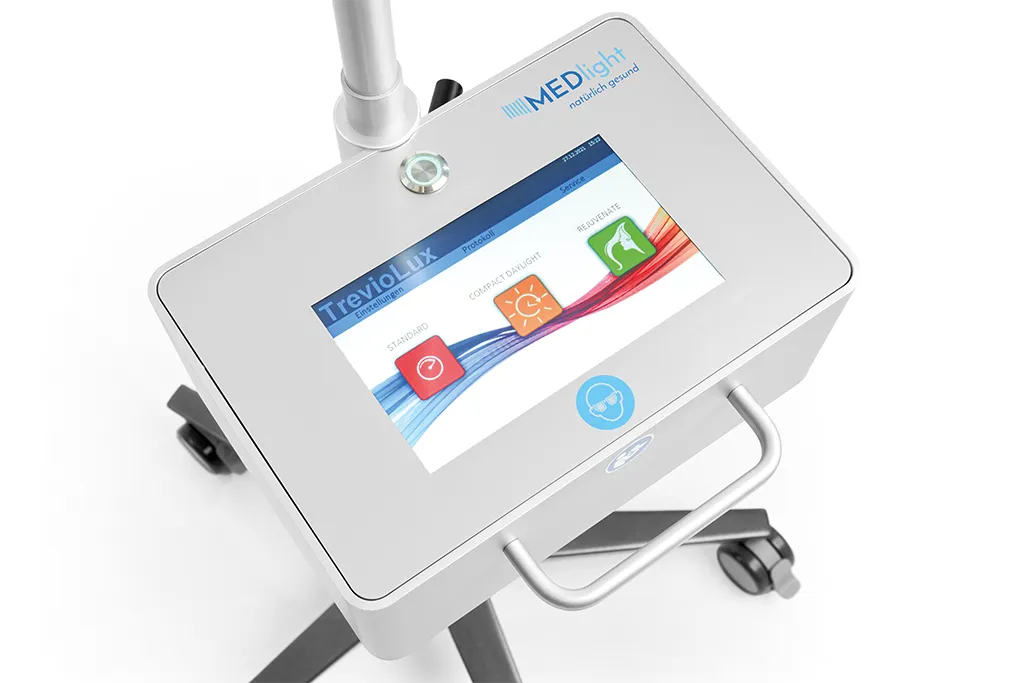

The intuitive touchscreen assists in the treatment process. Use the standardized treatment presets or freely adjust the dose and light output. Save frequently used settings for quick access. Treatment records are saved and can be reviewed.
The latest generation of high-performance LEDs reduce energy consumption while being safe and reliable. They are designed for over 65,000 hours of use. Special focus lenses ensure homogeneous and adjustable output over 90 mw/cm².
The TREVIOLUX is a versatile and innovative device designed to cater to a wide range of applications. With a unique core design, a it delivers exceptional performance and reliability, making it a standout choice for PDT treatments.
The TREVIOLUX combines three applications in a single device. At a peak wavelength of 630 nm, the light penetrates deeply and effectively into the tissue during irradiation.
The intuitive touchscreen assists in the treatment process. Use the standardized treatment presets or freely adjust the dose and light output. Save frequently used settings for quick access. Treatment records are saved and can be reviewed.
Quickly set up the best treatment position using the flexible treatment arm. The trifold treatment segments can be angled and perfectly match the shape of the treatment area.
Integrated wheels and its compact footprint make the device mobile. You can easily store or move the device between sessions. The mobile and compact design offers several advantages for all types of healthcare facilities, such as improved access for patients with disabilities and simple integration into existing environments.
The latest generation of high-performance LEDs reduce energy consumption while being safe and reliable. They are designed for over 65,000 hours of use. Special focus lenses ensure homogeneous an adjustable output of up to 90 mw/cm² (up to 135.000 LUX).
The large and homogeneous illumination area of 300 cm² allows the exposure of large lesions in a single session.
The housing is made from high-grade aluminum, durable, and easy to clean. Very little maintenance is needed to keep the hardware in excellent condition.
The Soft-Start function will gently increase the light output while maintaining the correct dosage. The patient has time to adjust, which makes the experience much more tolerable.
The optional Pulse-Mode can reduce discomfort for some patients by alternating the light intensity in an optimized pattern.
Please choose your desired options below to personalize your device. Afterwards, you can send your request and we will get into contact with you as soon as possible.
The PDT device that offers the best of three worlds in one sleek device, providing top-tier PDT treatment.
Do you need more information?
Talk to our experts or explore the details in our technical specs.
Technical Details
MEDlight Service+
Optimize your product package with MEDlight Service+. Benefit from an automatic warranty extension plan, coupled with access to top-tier technical support from the people with unmatched familiarity with your devices.
MEDlight Academy
Are you interested in enrolling in MEDlight Academy? Empower your staff through precisely tailored training courses, curated by MEDlight to maximize the potential of your devices.
Global Connect
Tailor your product for global markets: customized language options, regulatory compliance, and power supply adaptation to meet diverse country requirements.
{{modelselected}}
You can send us your configuration to get a free quote below.
Summary
{{selected_updates}}
Get Details:
Need some assistance?
Request a quote and we will get into contact and help you make the best decision.
| TREVIOLUX | |
|---|---|
| Lamps | |
| Spectrum | 630 nm peak wavelength |
| Therapy Area | 250mm x 120mm (300cm²) |
| Power | |
| Voltage | 100V - 240V, 47Hz - 63HZ |
| Power consumption | 145VA / 181W |
| Dimensions | |
| Height |
102 cm - 182cm (Adjustable) |
| Footprint |
Ø 65cm |
| Weight |
12,5 kg |
| Features | |
| Treatment Modes |
|
| Pain Management |
Soft-Start, Pulse Mode |
| Operation | Touchscreen Interface |
| Interface | Customizable Quick Actions |
| Mobility | Integrated wheels |
| Fully Adjustable |
|
